Structural Fire Suit - Gen1 Model X

EXCELLENT FADE RESISTANCE
- The UV sensitive fibres are woven into the back of the outer shell fabric, protecting them and preventing damage.

BETTER FABRIC COLOUR
- Our fibre is spun dyed, rather than being woven before its dyed. This gives better colour integrity and reduces fade.

HEAT STOPPING OUTER SHELL
- The fire suit outer shell is a unique 3D rib raft design, trapping air like double glazing. Because of this design the fabric can be 25% lighter and yet be stronger and more breathable.

MORE BREATHABLE
- Heat impacts performance. With a breathability RET of 13.2, this garment is game changing for wearer experience. RET is better lower, most suits are around an RET of 30.

NO HARMFUL TREATMENTS
- The garment outer shell is certified to OEKO-TEX Standard 100. No formaldehyde, P-fos, chlorine, nickel or lead content is in the fabric.

NON COMPRESSIBLE LINING
- Unlike silicon dots, the waterproof moisture barrier lining is made with thick aramid ribs that don't wear off, hold their shape and create channels of air that don't compress giving excellent thermal ratings.

NEXT TO SKIN SPORTS FABRIC
- By using a high wicking sports style FR viscose, sweat is quickly wicked off the skin through the suit layers, rather than being absorbed in a tick wadding of fabric.

CUFF AND KNEE PROTECTION
- Jacket sleeves use a recessed cuff with a wristband made from a double layer woven knit. This holds its shape on the wrist and gives exceptional comfort.
- Trousers have a 9mm Nomex neoprene 'wetsuit' fabric inside, giving unparalleled impact protection.

INCREDIBLE HEAT TRANSFER
- Standard AS 4967:2019 states that in 13.5 seconds of contact with a 260 degree hotplate, the temperature within the suit must not rise more that 24 degrees.
Our ratings were 55 seconds at the knee and 45 seconds at the shoulder, more than triple the requirements.

INTERNATIONAL CERTIFICATIONS
- AS 4967:2019 - Protective clothing for structural firefighting.
- 4.12 High visibilty trim to AS/NZS 1906.4.2010.
- 4.30 High visibilty trim limited flame spread and heat resistance.
- 4.60 Conductive heat compressive resistance ISO 12127.1.
- AS/NZS 4967:2009 - Protective clothing for structural firefighting.
- EN469:2005 - Protective clothing for structural firefighting.

JACKET FEATURES

- Fold back & attach chin flap design.
- Pocket under zip flap.
- Double upper radio pockets on each chest with mic tabs above. Able to be closed flat when not in use.

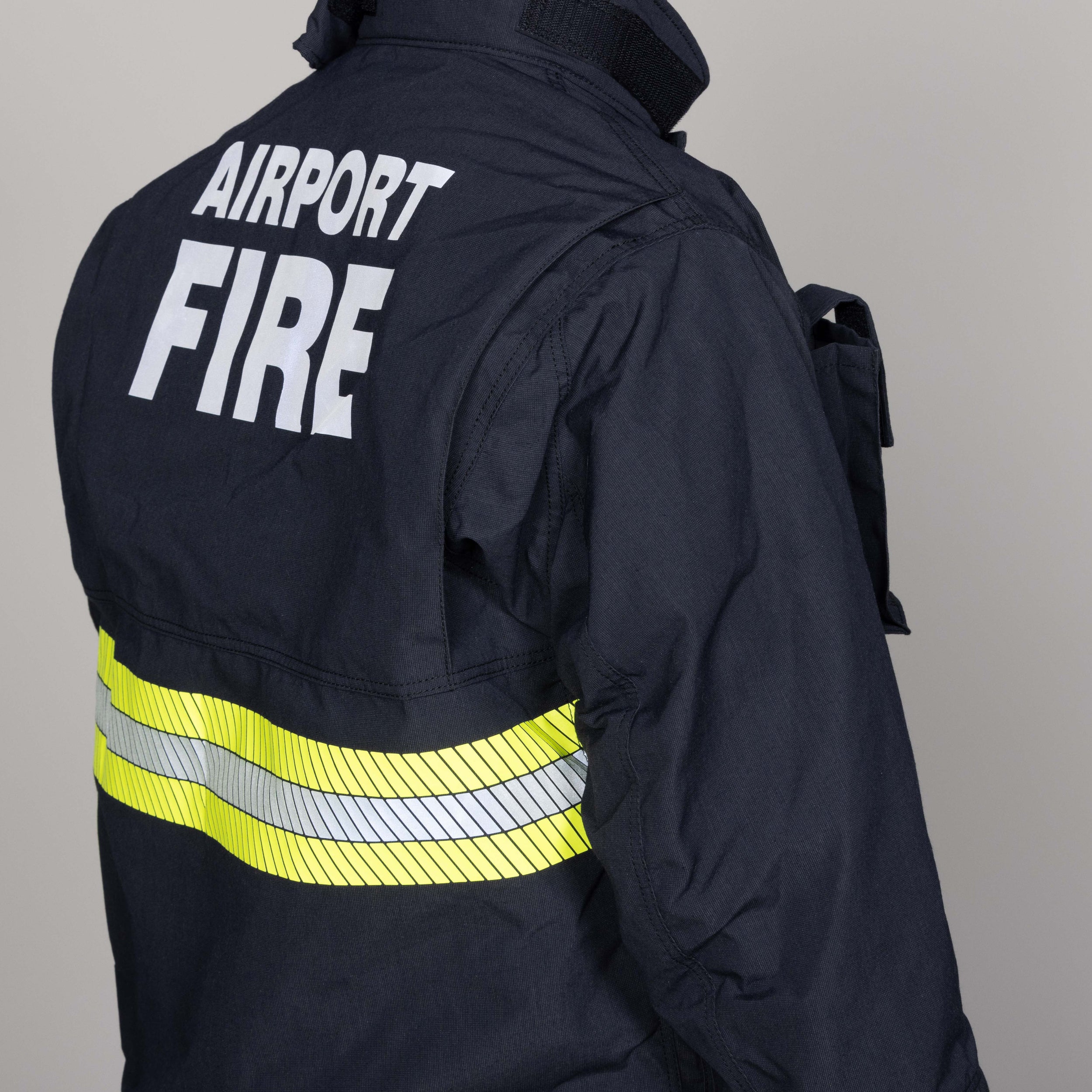

- Segmented 3M triple trim 75mm reflective.

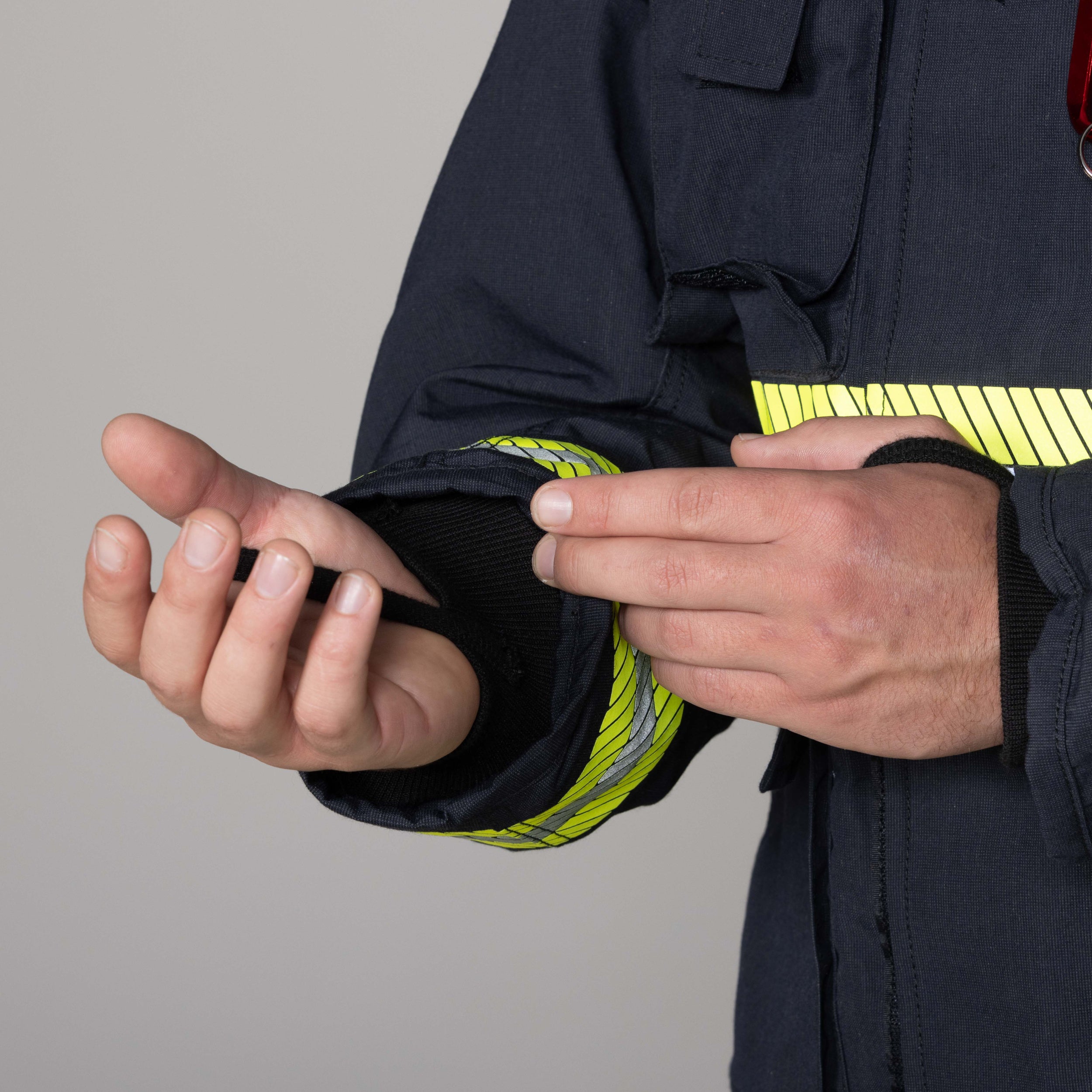

- Jacket cuffing FR aramid rib knit, glove recessed, with thumb loops.
- Double front lower jacket pockets.
- Detachable outer name badge.
- Pleated expanding shoulder finish and articulated arm design.

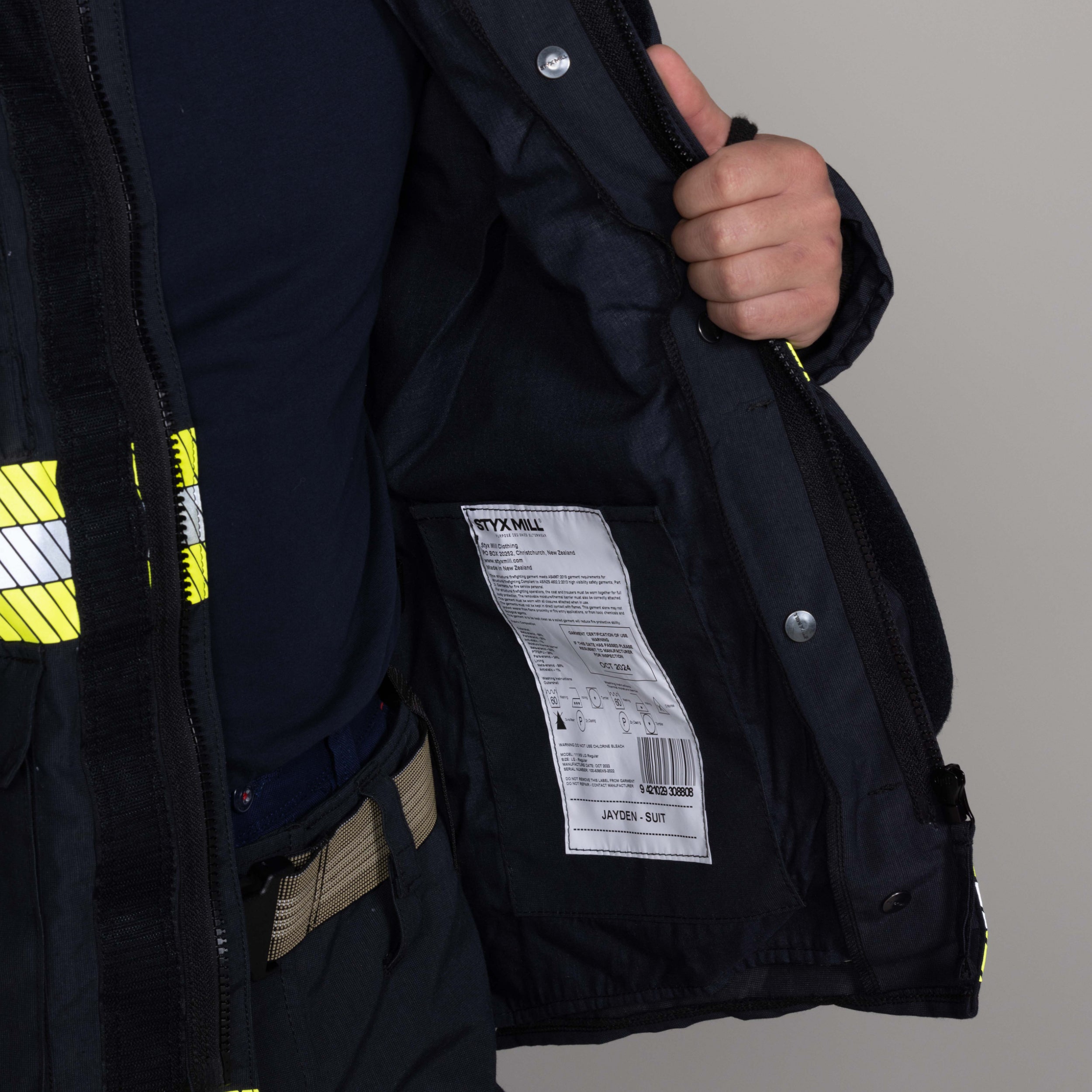

- Lining removable for sweat or contamination washing, and replaceable.

TROUSER FEATURES

- Double webbing pull handles for quickly pulling up garment.
- Double reinforced webbing brace attachment points.

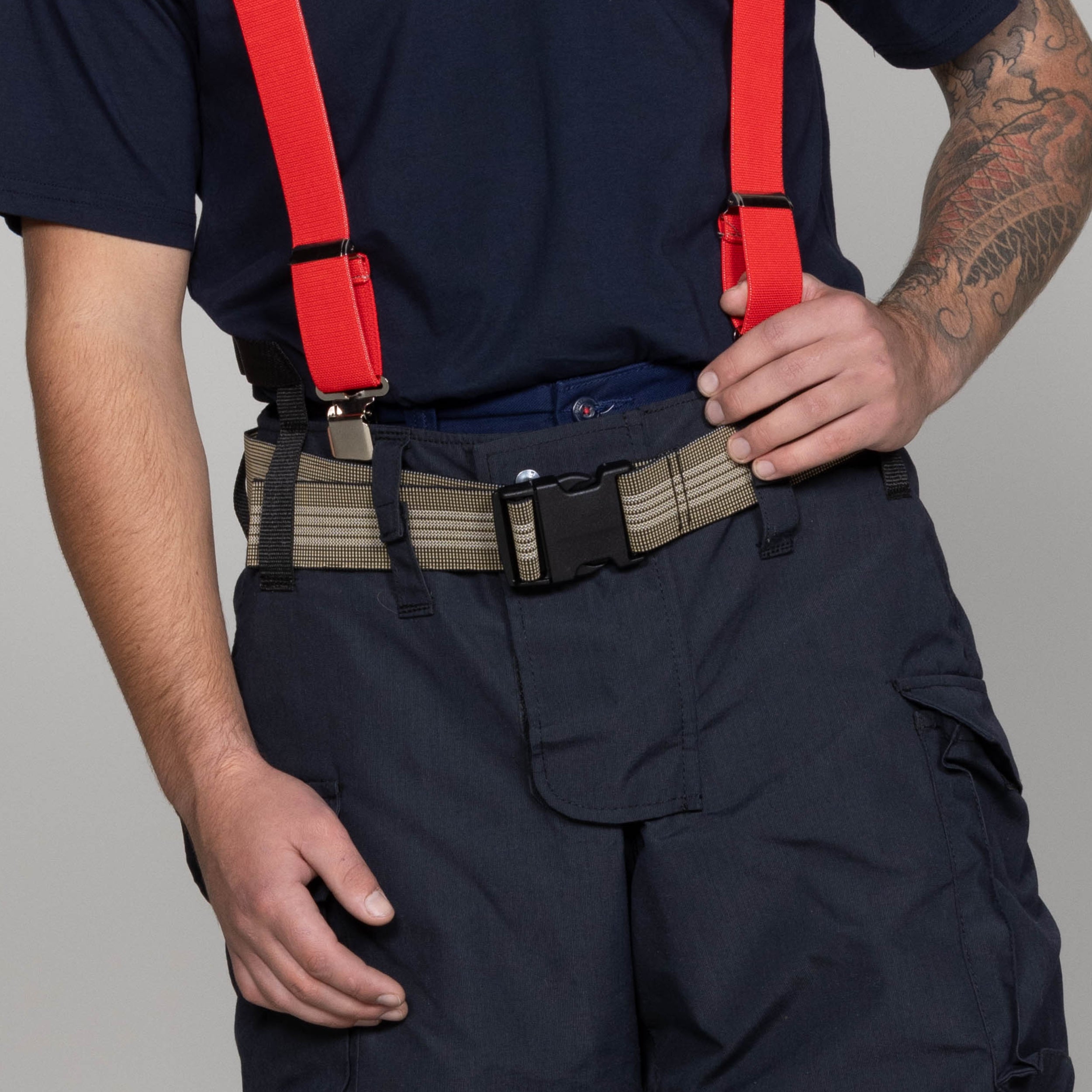

- Four stripe FR elastic belt with single pull adjustable buckle.
- FR hook and loop front fly opening with additional fixing metal dome.
- Inbuilt Nomex foam kneepads with pleated expansion knee design.
- Segmented 3M triple trim 75mm reflective.
- Able to take red elastic clip braces (belt comes standard).

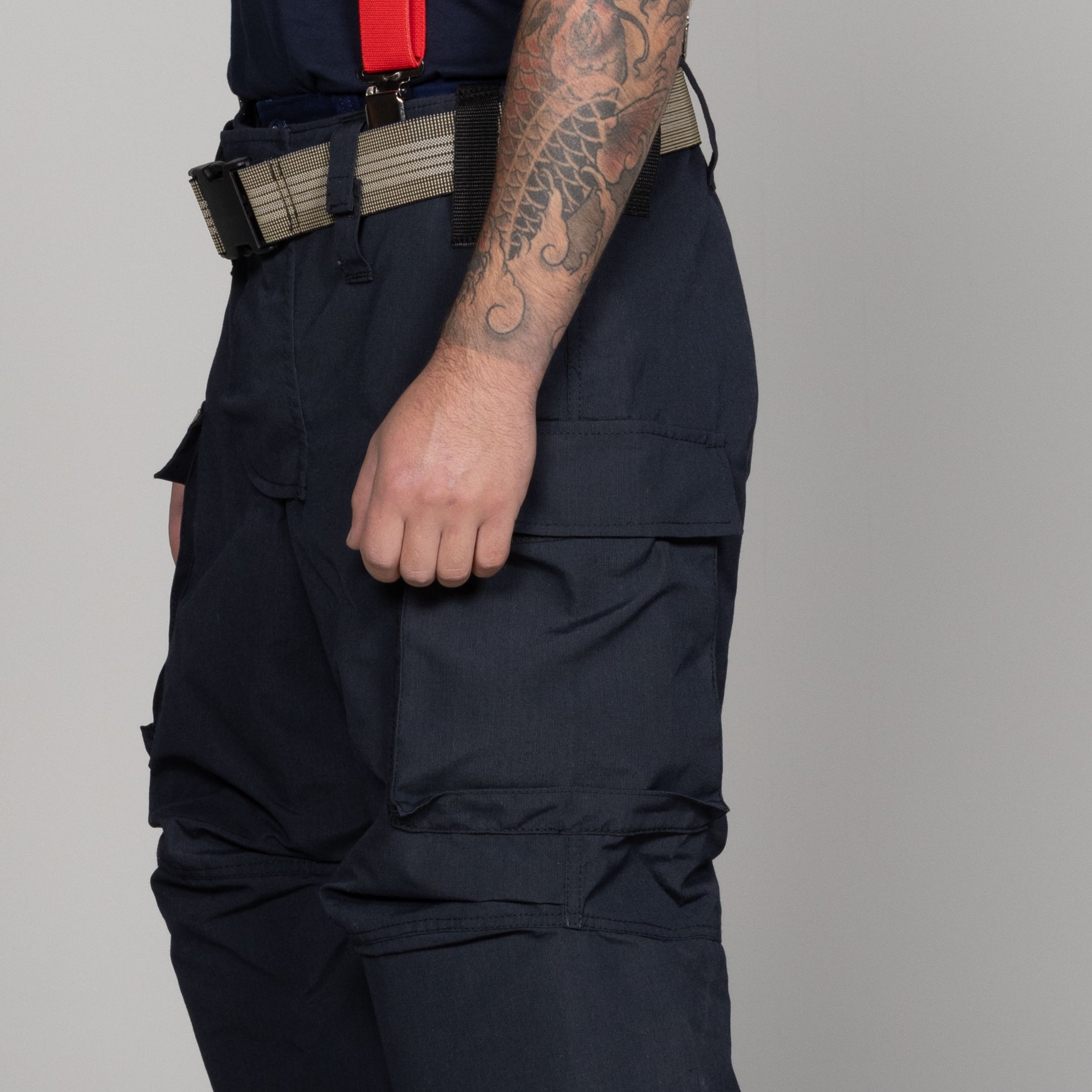

- Double trouser leg pocket design.
- Lining removable, for sweat or contamination washing, and replaceable.

OPTIONAL EXTRAS

- Orange coloured recognition fabric on shoulders.
- Additional removable name badges.
- Customisation of jacket print.
- Customisation of reflective tape.
- Orange segmented 3M reflective tape.
- Removable or fixed liner
- Custom arm or leg length
- Radio pocket cord holders
- Removal or addition of jacket and trouser pockets.
- Combat racing baton pockets.
- Elastic clip H braces.
- Kevlar knee scuff pads.
- Cuff and leg adjusters.
- Trouser internal debris gaiters.

- Outer shell. Double-faced weave of para-aramid blend, 98% aramid / 2% antistatic; 220g/m2. colour Navy or Tan.
- Moisture barrier. 100% aramid non-woven laminated on ePTFE membrane 200g/m2. colour white.
- Liner. Woven next to skin fabric, aramid & lensing FR blend, 90g/m2, colour navy
- Cuffing. FR rib knit cuff made from an aramid & viscose blend with 3% antistatic. Colour black.
- Internal knee padding. FR treated neoprene with polyester liner and strong pad aramid face. 6.4mm thick. Colour black
- Reflective. 3M™ Scotchlite™, 76.2mm (3"), meets EN 469, colour yellow/silver/yellow triple trim.

All measurements are taken by the user pulling on a polycotton jacket and trouser demonstrator suit that matches the garment inner sizing and outer arm/leg length.

Custom variations can be made to arm length and leg length in cm or inches, added or subtracted as required for wearer personal experience.

Styx Mill can visit to assist with garment sizing, or courier a suitcase with all the sizing demonstrator garments.

All garments have an internal label including care instructions, re-certification dates, GS1 barcode, user name and serial number.

Styx Mill has a standard warranty and an additional Lifetime Support warranty package, including free inspections, online records, free repairs and a garment trade programme.

All repairs are undertaken at our manufacturing base in Christchurch, New Zealand.
